1.2 Ton TM+ Pickup
Welcome to ACI Motors Limited » Products » Automobiles » FOTON » 1.2 Ton TM+ Pickup
Technical Parameters
| Product Model | Foton BJ 1032 | |

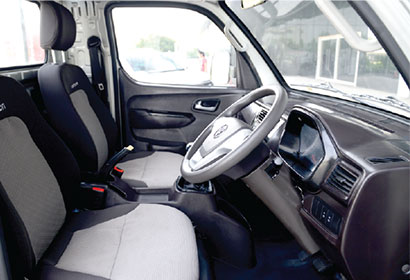

| Cabin | Cabin type | Single row seat |
| Persons in cab | 3 | |

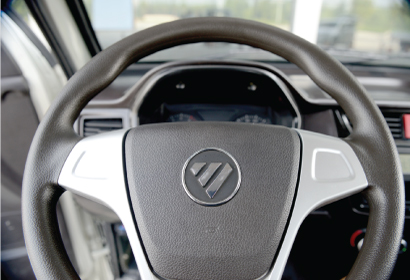

| Steering type | Power steering | |
| Dimensions | Wheelbase (mm) | 2750 |
| Overall dimensions (L x W x H) mm | 5005 x 1730 x 2010 (mm) 16' 5" x 5' 8" x 6' 7" (ft) |
|

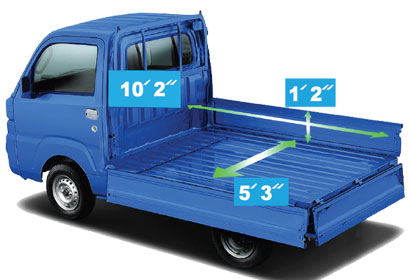

| Cargo dimensions (L x W x H) mm | 3100 X 1610 X 360 (mm) 10' 2" x 5' 3" x 1' 2" (ft) |
|
| Weights | GVW (kg) | 2670 |
| Curb weight (kg) | 1470 | |
| Rated payload (kg) | 1200 | |
| Vehicle performance | Max. speed (km/h) | 80 |
| Max. slope of climb (%) | Greater than or equal to 25 | |
| Min. turning diameter (m) | 10 | |
| Min. ground clearance (mm) | 185 | |
| Engine | Engine model | QC485Q |
| Engine type | Vertical, In line, Water cooling | |
| Four-stroke | ||
| Displacement (CC) | 2087 | |
| Max power | 35 | |
| Max torque (N.m/rpm) | 125 | |
| Clutch and transmission | Transmission model | MG70 |
| Transmission ration | 5 Speed ( 5 Forward, 1 Reverse ) | |
| 2-4-R | ||
| Clutch type | 215x146 | |
| Diaphragm spring clutch | ||
| Braking system | Service brake type | Fluid, Front disc/Rear drum |
| Parking brake type | Central drum brake | |
| Battery | Electric system | 12V, 120AH |

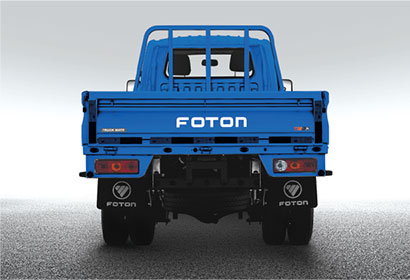

| Wheel and Tyre size | 6+1 , 175R14LT | |
| Fuel tank capacity (L) | 50 | |
