Yanmar YH700
Welcome to ACI Motors Limited » Products » Agricultural Machineries » Combine Harvester » Yanmar YH700
Dimensions
|
Model
|
YH700
|
YH700GU
|
YH850W
|
YH850GUW
|
|---|---|---|---|---|
|
Type
|
Top sacker
|
Grain tank
|
Top Sacker
|
Grain Tank
|
|
Total Length (mm)
|
n/a |
5070
|
n/a | |
|
Total Width (mm)
|
n/a |
2285
|
n/a | |
|
Total height (mm)
|
2930
|
2820
|
2930
|
2820
|
|
Combine weight (kg)
|
3313
|
3571
|
3333
|
3591
|
Technical Parameters
| Model | YH700 | YH700GU | YH850W | YH850GUW | |
|---|---|---|---|---|---|
| Driving Part | Crawlers (Width x Length) mm | 500 x 1700 | 500 x 1750 | 550 x 1700 | 550 x 1750 |
| Gear shift method | HST with hydraulic servo, mechanical FDS | ||||
| Number of transmission gears | 3 | ||||
| Travel speeds (at rated enginespeeds m/sec) | Low speed: 0 to 0.88 Standard: 0 to 1.37 High speed: 0 to 1.85 |
Low speed: 0 to 1.00 Standard: 0 to 1.55 High speed: 0 to 2.09 |
|||
| Grain Processor | Grain Processing Method | Top sacker | Grain tank | Top sacker | Grain tank |
| Tank or hopper method (L) | 490 | 1670 | 490 | 1670 | |
| Discharge height (mm) | s | 1049 to 4372 | s | 1049 to 4372 | |
| Discharge length (mm) | s | 2880 | s | 2880 | |
| Discharge time (minutes) | s | 1 minutee 50 seconds | s | 1 minute 50 seconds | |
| Header | Interval between divider edges (mm) | 2060 | |||
| Header device type | Reel + Platform | ||||
| Cut width (mm) | 1975 | ||||
| Cut height range (mm) | -50 to 1000 | ||||
| Rotation (diameter x width) mm | 900 x 1920 | ||||
| Rotation speed rpm | 43 (37) | ||||

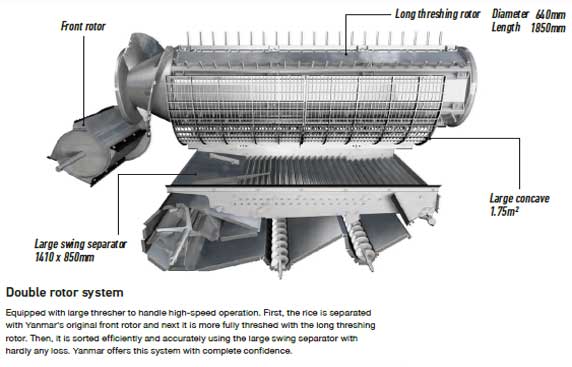

| Thresher | Type | Axial-flow bar type with vertical front rotor | |||
| Rotor (diameter x length) | 640 x 1850 | ||||
| Sorting method | Vibratory motion, winnower, reprocessing | ||||
| Sorting width (mm) | 850 | ||||
| Sorting palte (width x length ) | 850 x 1410 | ||||
| Concave Area m2 | 1.75 | ||||
