LOVOL RG108 PLUS
Welcome to ACI Motors Limited » Products » Agricultural Machineries » Combine Harvester » LOVOL RG108 PLUS
SPECIFICATIONS
Dimensions
| Length (mm) | 5200 / 5970 |
| Width (mm) | 2750 / 2410 |
| Height (mm) | 2750 / 2875 |
| Weight (kg) | 3750 |
| Feeding Capacity (kg/s) | 5 |

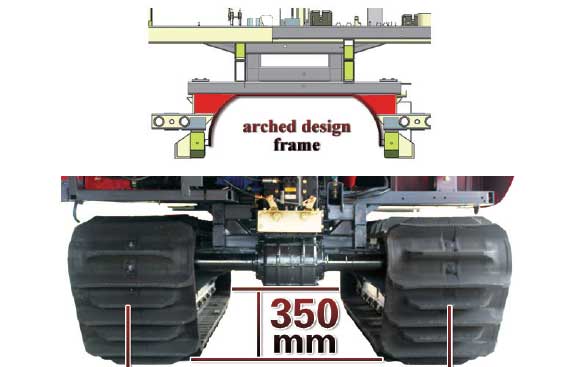

| Minimum Ground Clearance (mm) | 350 |
Chassis
| Ground contact pressure of crawler (kPa) | 20 |
| Tank gauge (mm) | 1250 |
| Transmission type | Mechanical |
| Pitch (mm) | 90 |
| Pitch number | 56 |
| Track width (mm) | 500/550 |
| Theoritical traveling speed (km/h) | 0 ~ 8.68 |
Technical Parameters
| Product Model | 4LZ-5G |
| OD of threshing drum (mm) | 620 |
| Length of threshing drum (mm) | 2050 |
| Volume of grain tank (L) | 1.78 |
| Height of uploading port (mm) | 880 ~ 4500 |
| Hydraulic oil tank capacity (L) | 21 |
| Battery Model | Maintenance-free type |
| Battery Voltage (V) | 12 |
